The device is programmed at the production stage according to individual orders. The ranges of displayed values will vary depending on the selected Clock model. Already at the order stage, you should confirm with the sales department what the required values of the countdown time are.

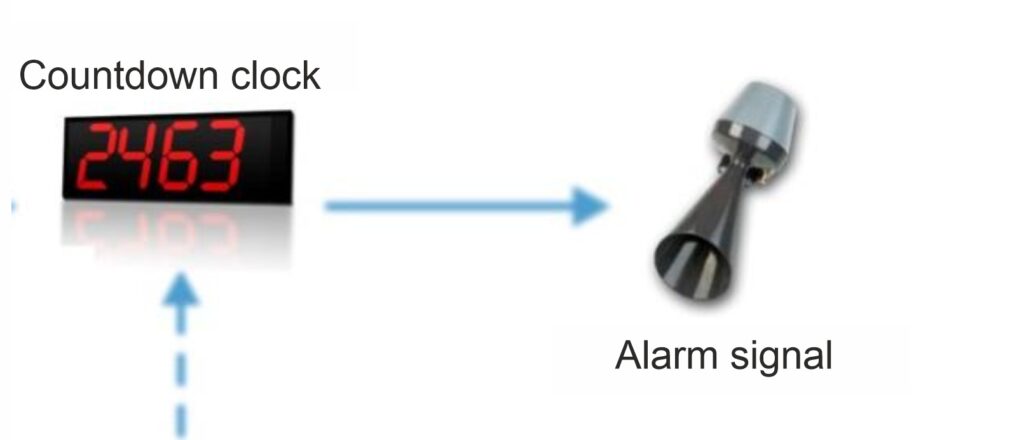

The device can be equipped with a relay to which an external signaling device can be connected, e.g. a light or sound signal (see the accessories table) or any other device connected to an external voltage source (maximum 230V and 3A).
Attention !!! This feature is not
available as standard. Please ask for
this when placing your order!

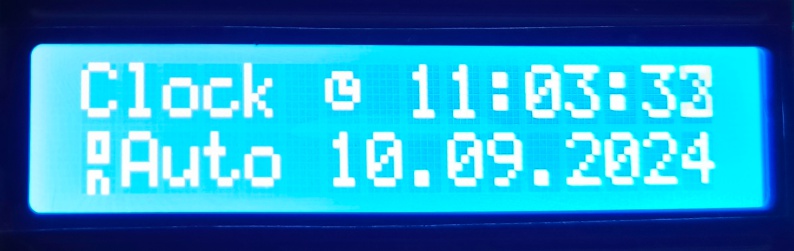

The device has a small LCD screen built-in on which the menu settings are displayed.
The meter is configured using the included infrared remote control (range up to 10m). The intuitive and easy-to-use menu allows you to quickly select the desired function, initial value and start the counter.
Clocks can contain 3, 4, 5, 6, 7, 8 or 9 digits, depending on the required value for the countdown.
Below are the maximum values of individual counters:
Seconds (2 digits): maximum value 99
Minutes (2 digits): maximum value 99
Hours (2 digits): maximum value 99
Days (2 digits): maximum value 99
Days (3 digits): maximum value 999
Or Days (4 digits): maximum value 9999
Example 1) If the clock is built from 2 counter modules MM:SS (minutes:seconds),
the maximum value for this clock will be 99 minutes and 59 seconds.
Example 2) If the clock is built from 3 counter modules HH:MM:SS (hours:minutes:seconds),
the maximum value for this clock will be 99 hours, 59 minutes, and 59 seconds.

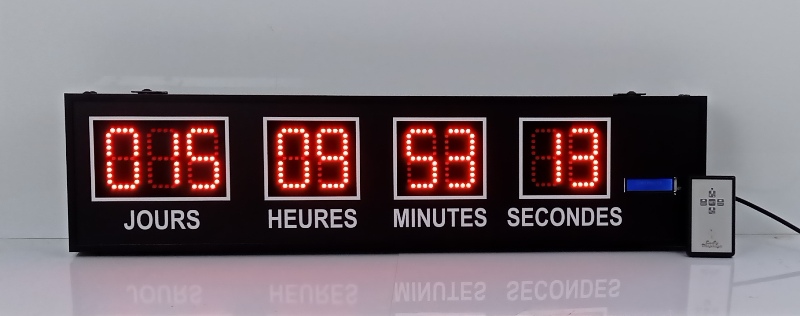

Example 3) If the clock is built from 4 counter modules DDD:HH:MM:SS (days:hours:minutes:seconds),
the maximum value for this clock will be 999 days, 23 hours, 59 minutes, and 59 seconds.

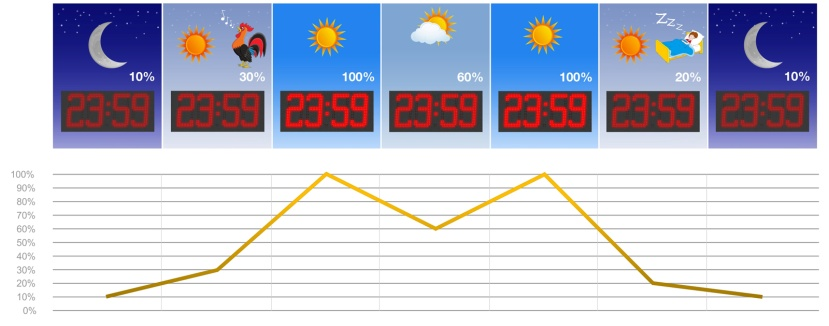

The device is equipped with a light intensity sensor, which allows you to automatically adjust the intensity of the digits, depending on the ambient brightness. This function ensures optimal brightness of the LEDs in daylight, in the evening and at night. When automatic brightness is selected, the device is completely independent. It is also possible to manually select the brightness from 10 different intensity levels.

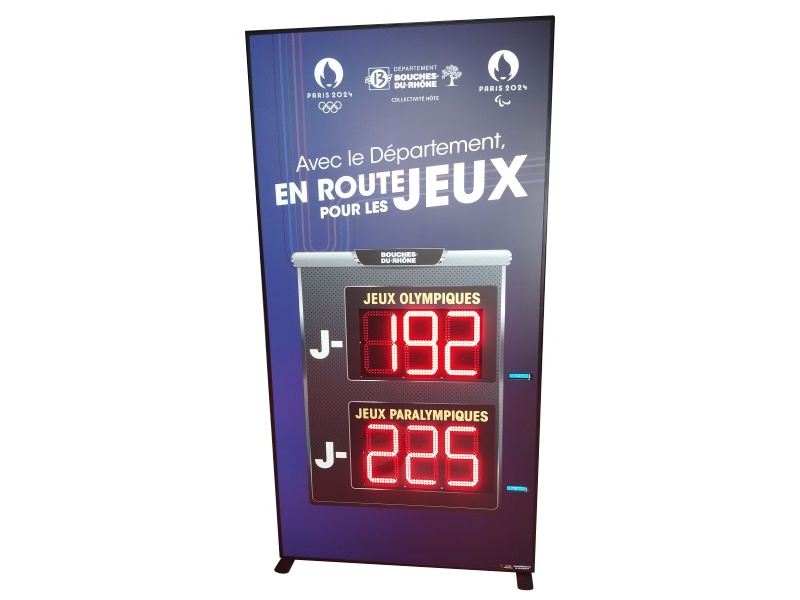

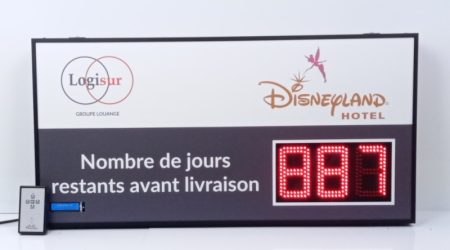

Each board is individually designed and takes into account the client’s guidelines. The graphic concept may contain a number of elements such as: logo, graphic elements, images, text and counter titles. All this to create a unique counter 100% tailored to the needs of our customers.
The graphics are printed on high-quality ORACAL polymer foil. Additionally, a special transparent polymer foil with a UV filter is applied to the printout using a warm technique. This laminate protects the print against scratches and mechanical damage and almost doubles the resistance to color fading.
